High Quality ODEX Drilling System 165 Overburden Casing System for Well Drilling
Product description
ODEX is an excellent option when unconsolidated formations are too dense or cobbly for Auger Drilling. ODEX is a down-hole air hammer system that is designed to advance casing during drilling. Once a desired depth is reached they eccentric bit can be retrieved leaving the casing in place for sampling or installations.
| Model | Casing sizes | Min. inner dia. Of casing shoe | Reaming Dia. | Hammer shank | Drill pipe |
| Max. OD | Min. ID | Thread | O.D. | Wrench Flat |
| ODEX90 | 115 | 102 | 90 | 123 | DHD3.5/COP32/QL30 | API 2 3/8" REG | 76 | 65 |
| ODEX115 | 142 | 128 | 115 | 152 | DHD340/COP44/SD4/QL40/M40 | API 2 3/8" REG | 76 | 65 |
| ODEX140 | 171 | 157 | 140 | 187 | DHD350R/COP54/SD5/QL50/M50 | API 2 3/8" REG | 89 | 65 |
| ODEX165 | 196 | 183 | 165 | 211 | DHD360/COP64/SD6/QL60/M60 | API 2 3/8" REG | 114 | 95 |
| ODEX190 | 222 | 205 | 190 | 237 | DHD360/COP64/SD6/QL60/M60 | API 3 1/2" REG | 114 | 95 |
| ODEX240 | 273 | 261 | 240 | 308 | DHD380/COP84/SD8/QL80/M80 | API 3 1/2" REG | 114 | 95 |
| ODEX280 | 324 | 305 | 280 | 378 | DHD1120/SD10/NUMA100 | API 4 1/2" REG | 114 |
Features
Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
Easy soil and groundwater sampling during drilling;
Possible to measure yield estimate at selected depth in the formation;
Advantageous in unconsolidated formations with a high risk of caving.
Product apllication
It is suitable for drilling water wells, geothermal wells, short mircopiles, medium mini-type grouting hole of building, damand harbour project.

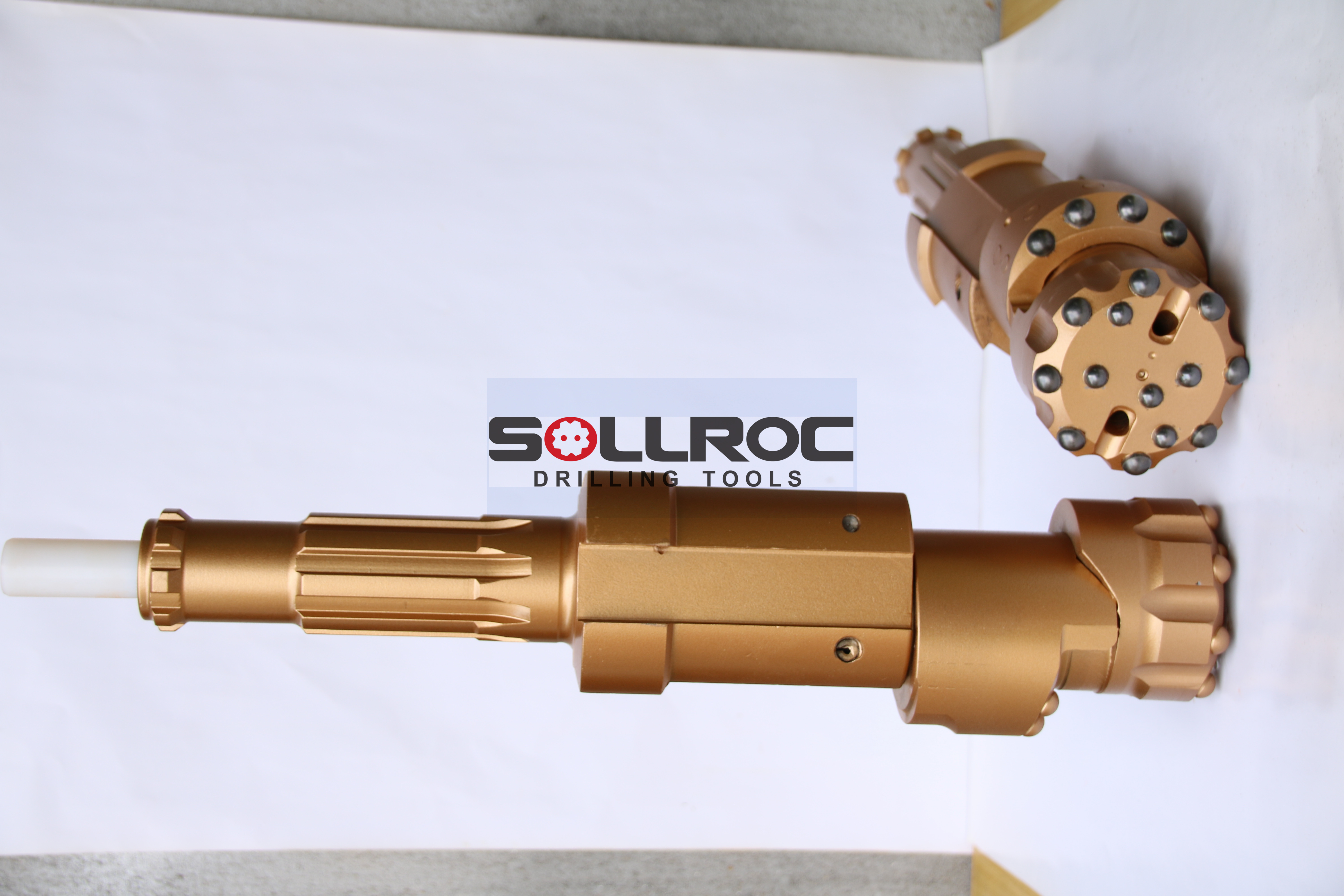

Detailed pictures
Packaging and shipping
Packaging: Carton+plywood case, or as request.
Shipping: By air, by sea, by express, as request.
