Drop Center Button Bits T51 Top Hammer Drilling Tools For Drilling Mining

  • 1
  • 2
  • 3

Brand Name : SOLLROC

Model Number : T51

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : 80-500

Payment Terms : T/T,

Supply Ability : 10000 pieces/month

Delivery Time : 18-25

Packaging Details : Cartons + ply wood case (no plastic)

Name : T51 Threaded Button Bits Top Hammer Drilling Tools For Drilling Mining

Material : Carbide, Steel Skirt And Carbide Bit

Diameter : 102mm-152mm

Face shape : Flat, Drop Center

casting technique : forging

Application : Used In Mining And Quarrying,tube Drilling

MOQ : 1 piece

Packaging : carton+plywood case

Color : black, red ,yellow, blue, or as request

Contact Now

Product Description

Sollroc offers high quality of tophammer drilling equipments , the main products are including tapered button bits and threaded button bits and tapered drill steel .the products made with high quality of raw material through special heat treatment ,various type suitable for afferent work site.

Drop Center Button Bits T51 Top Hammer Drilling Tools For Drilling Mining

T51 thread Retrac body button bits

Dia. Tip size (mm) Flushing hole No. Weight
mm inch Front Gauge Angle Side Front
89 3 1/2" 13x4 13X8 40° 2 - 5.3
89 3 1/2" 13x5 13x8 35° 2 1 5.3
89 3 1/2" 11x3,11x2 13x6 35° 4 - 5.3
89 3 1/2" 11x4,11x1 13x8 35° 4 - 5.3
89 3 1/2" 13x4,13x1 13x8 35° 4 - 5.3
102 4" 14x4 14x8 40° 2 - 7.3
102 4" 13x6 16x8 35° 2 1 7.3
102 4" 13x4,13x1 14x8 35° 4 - 7.3
102 4" 13x4,13x2 13x8 35° 4 1 7.3
102 4" 13x4,13x1 14x8 35° 4 1 7.3
115 4 1/2" 14x6 14x8 35° 2 - 9.8
115 4 1/2" 14x6 16x8 35° 2 - 9.8
115 4 1/2" 13x4,13x2 14x8 35° 4 - 9.8
115 4 1/2" 13x4,13x3 14x8 35° 4 - 9.8
115 4 1/2" 14x4,14x2 16x8 35° 4 - 9.8
127 5" 14x8 16x8 35° 2 1 12
127 5" 16x4,13x2 16x8 35° 4 - 12
127 5" 14x4,14x3 14x8 35° 4 - 12

Features

1. Cost - Initially cheaper investment

2. Less Impact Damage - Impact is less damaging to the cutting structure

3. Better in Hard Rock Formations - The fracturing action of a button bit is better in non-homogeneous rock formations.

4. More Control Over the Bit - In directional drilling applications, a button bit is easier to control offering lower torque, greater flexibility and a more steady tool face.

Related tools

Tapered bits

Diameter: 28mm-70mm
Degree: 4°,6°,7°,11°and 12°
Type: Chisel bit, Cross bit and Button bit
Skirt: Short or Long Skirt

Coupling Sleeves

Thread: R22-R38, SR28-SR35, T38-T51, GT60, ST58/68

Shank Adaptors

Type: Atlas Copco, Tamrock, Montabert, Ingersoll-Rand,
Furukawa, Boart Longyear and Gardner Denver etc.
Thread: R22-R38, SR28-SR35, T38-T51, GT60, ST58/68

Integral Drill Steel

Diameter: 28mm-41mm
Shank: H22x108mm, H25x159mm
Length: 400mm-4345mm

Detailed pictures

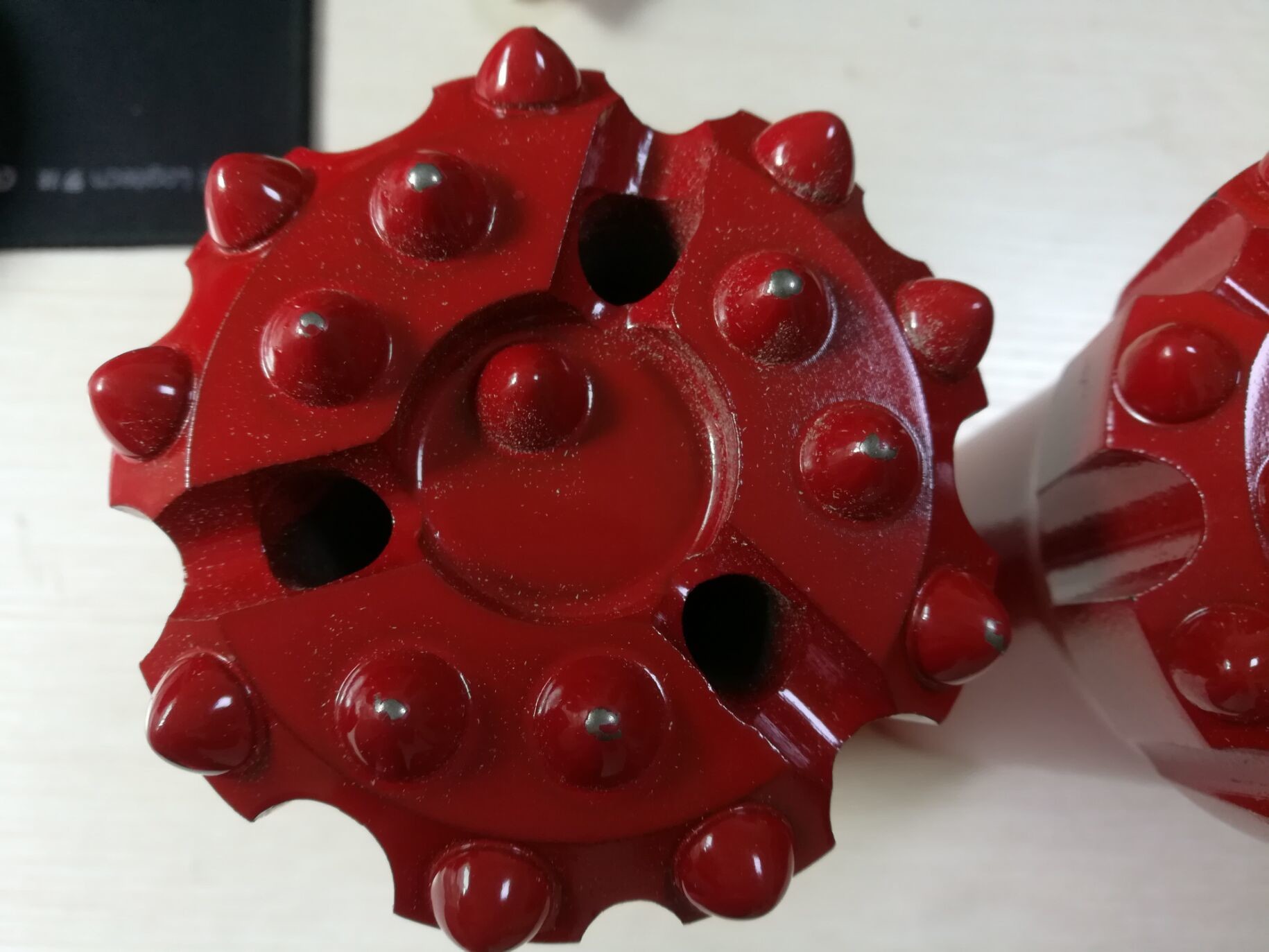

Drop Center Button Bits T51 Top Hammer Drilling Tools For Drilling MiningDrop Center Button Bits T51 Top Hammer Drilling Tools For Drilling Mining

Packaging and Shipping

Packaging: carton+plywood case, or as request.

Shipping: By air, by sea, by express, or as requset.

Company Information

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
