SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling

Name: SD6 High Air Pressure 6 DTH Drill Bits For Hard Rock Drilling
Brand: SOLLROC
Price: 1 USD

Wholesale SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling from china suppliers

Brand Name : SOLLROC

Model Number : SD Series bit

Certification : SGS

Place of Origin : China

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T,

Supply Ability : 10000 pieces/month

Delivery Time : 18 working days

Packaging Details : Cartons + ply wood case (no plastic)

Application : Quarrying, construction, civil engineering, mining,

Usage : mining, water well drilling, geothermal drilling

Product name : SD6 DTH Bit

Rock formation : Granite, limestone, quartz, etc

shank : DHD,Cop,QL,Mission,SD

Advantage : Hign Abrasion Resistance

Color : Black or as request

Size : FULL

Rock hardness : Granite, limestone, quartz, etc

Machine type : Drilling Tool,Drilling Equipment,Downhole Tools,Mining machine parts

Use : Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry

Name : SD Series bit

Material : Alloy Steel

Surface Treatment : Spray-Paint

Contact Now

SD6 High Air Pressure 6'' DTH Drill Bits with High Quality For Hard Rock Drilling

Product description

DTH hammer is a percussion system driving a piston inside hammer body with up and donw motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock. Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.

Product Advantages:

1. The most suitable hole diameter is 100–254 mm, in special applications can be up to 2M And the minimum can be around 50 mm as well.
2. Theoretically drilling depth is limited by back pressure only (can be up to several kilometers).
3. Adapt to hard rock and rock formation conditions (compared to top hammer).
4. Mainly use pressurized air for slag flushing, and sometimes air foam for special application.
5. Highly efficient in hard rock drilling (compared to the rotary drilling).
6. DTH drilling straightness is best in these three methods(rotary drilling, dth drilling and tophammer drilling)

SD Series DTH drill bit specification:

SD shank Bits	Bit Dia.		No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kgs)	Part No.
SD shank Bits	mm	inch	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kgs)	Part No.
SD6	152	6"	2	8×φ16	8×φ16	26.0	SD6-152
	165	6 1/2"	2	8×φ18	8×φ16	28.0	SD6-165
	178	7"	2	8×φ18	8×φ18	31.0	SD6-178
	190	7 1/2"	3	9×φ18	9×φ16	34.0	SD6-190
	203	8"	3	9×φ18	9×φ18	36.0	SD6-203

other size bit

SD shank Bits	Bit Dia.		No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kgs)	Part No.
SD shank Bits	mm	inch	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kgs)	Part No.
SD4	105	4 1/8"	2	6×φ14	5×φ13	9.0	SD4-105
	110	4 1/4"	2	7×φ13	6×φ13	9.5	SD4-110
	115	4 1/2"	2	7×φ14	6×φ13	9.8	SD4-115
	120	4 3/4"	2	8×φ14	6×φ14	11.5	SD4-120
	127	5	2	8×φ14	7×φ14	12.3	SD4-127
SD5	133	5 1/4"	2	7×φ16	6×φ14	15.5	SD5-130
	140	5 1/2"	2	7×φ18	7×φ14	16.0	SD5-140
	146	5 3/4"	2	8×φ18	7×φ14	16.5	SD5-146
	152	6"	2	8×φ18	8×φ14	17.0	SD5-152
	165	6 1/2"	2	8×φ18	8×φ16	19.0	SD5-165
SD6	152	6"	2	8×φ16	8×φ16	26.0	SD6-152
	165	6 1/2"	2	8×φ18	8×φ16	28.0	SD6-165
	178	7"	2	8×φ18	8×φ18	31.0	SD6-178
	190	7 1/2"	3	9×φ18	9×φ16	34.0	SD6-190
	203	8"	3	9×φ18	9×φ18	36.0	SD6-203
SD8	195	7 11/16	3	9×φ18	9×φ16	32.0	SD8-195
	203	8"	3	9×φ18	9×φ18	41.0	SD8-203
	216	8 1/2"	2	10×φ18	12×φ16	49.0	SD8-216
	254	10"	3	11×φ18	17×φ16	71.0	SD8-254
	305	12"	4	12×φ18	29×φ16	95.0	SD8-305
SD10	254	10"	3	12×φ18	20×φ16	108.0	SD10-254
	305	12"	4	12×φ18	36×φ18	125.0	SD10-305
	311	12 1/4"	4	12×φ18	36×φ16	130.0	SD10-311
	318	12 1/2"	4	12×φ18	38×φ16	142.0	SD10-318
	330	13"	4	16×φ18	42×φ16	155.0	SD10-330
SD12	305	12"	4	12×φ18	36×φ16	156.0	SD12-305
	311	12 1/4"	4	12×φ18	36×φ16	168.0	SD12-311
	330	13"	4	16×φ18	42×φ16	180.0	SD12-330
	356	14"	4	16×φ19	48×φ16	191.0	SD12-356
	381	15"	4	16×φ19	48×φ18	200.0	SD12-381

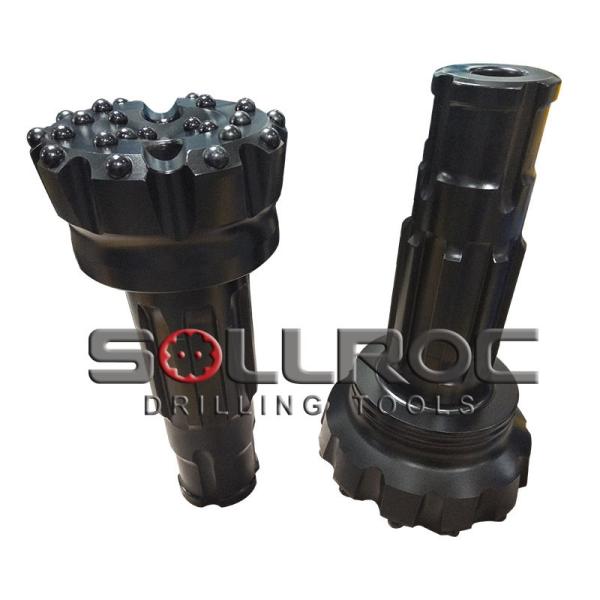

Detail photos:

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling
